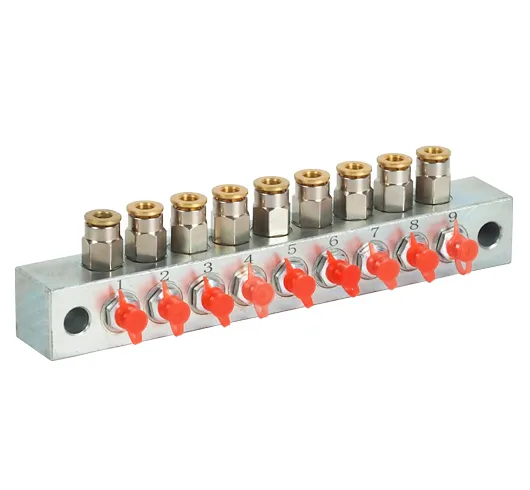

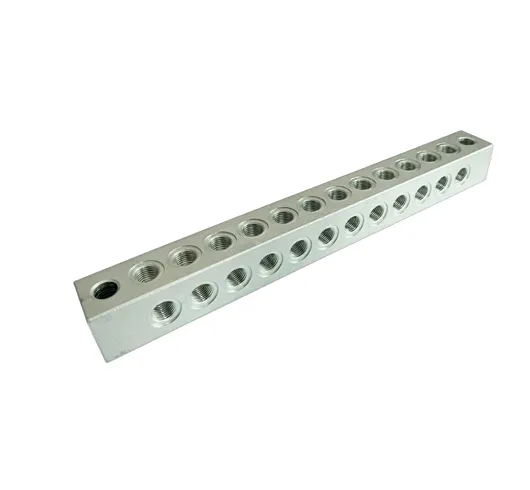

VSD Oil Distributor Block
The VSD oil distribution manifold blocks accurately distributes grease or oil from the lubrication pump to each lubrication point according to a preset ratio, ensuring uniform and reliable lubrication for all moving components. Featuring a compact design and easy installation, it can be paired with manual or electric lubrication pumps as required. The system also supports push-in fittings, compression fittings, and other accessories, allowing for a flexible and efficient lubrication pipeline layout suitable for various equipment configurations.
Technical Information of VSD Oil Distributor Block
| Part Number | Out Thread | Out Number | A | B | C | D |
| VSD-04KT | M10*1 | 4 | 100 | 80 | 16 | 48 |
| VSD-09KT | M10*1 | 9 | 180 | 128 | 16 | 48 |
| VSD-12KT | M10*1 | 12 | 228 | 208 | 16 | 48 |

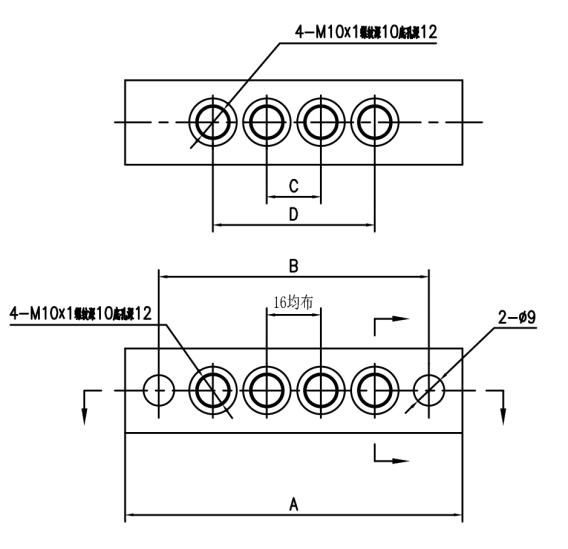

Dimensions of VSD Oil Distributor Block

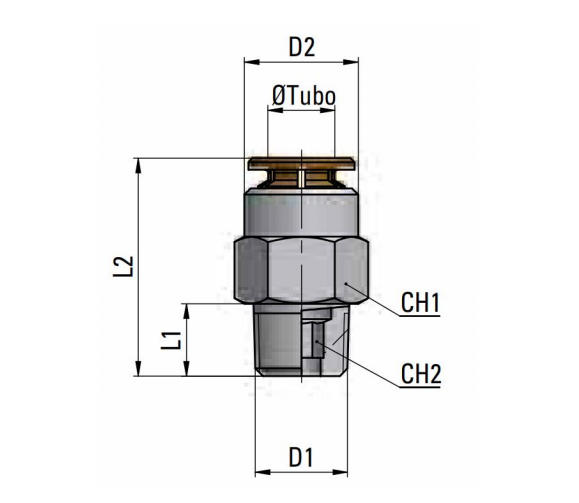

Straight Push-in fitting
Part Number | OD | D1 | D2 | L1 | L2 |
MP1104M10 | Ø4 | M10*1.0 | 9 | 8 | 20 |
MP1106M10 | Ø6 | M10*1.0 | 12 | 8 | 22 |

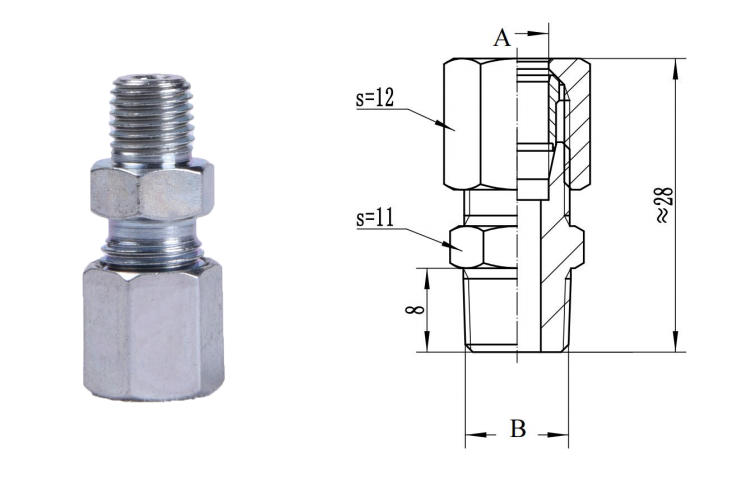

Straight fitting assembly
Part Number | A | B | Material |
5DM0410 | Ø4 | M10*1 | Carbon steel |
5DM0610 | Ø6 | M10*1 | Carbon steel |
Grease Nipples
Part Number | Thread | Material |
3NP10 | ZM10*1 | Nickel-plated |
Characteristics of VSD Oil Distributor Block
Can be customized according to customer requirements non-standard VSD distribution block, can also integrate Grease nipples and Push-in fitting, Flexible pipe.
Contact your sales manager for details.
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
