LUBESTAR Hydraulic Pump
The high-performance Lubestar hydraulic pump combines a rotary drive pump motor and reciprocating pump lines with flexible control functions to operate in hot deserts and cold Arctic temperatures. The integrated control unit regulates the lubricant quantity and operating pressure. The pump output can be adjusted from 115 to 737 cm³/min.
LUBESTAR High performance hydraulic pump
| Technical Data | |
| Functional principle | Hydraulic piston pump |
| No. of output Port | 1 |
| Adjustable flowrate | Max. 737 cm³/min Min. 115 in³/min |
| Supply inlet pressure | Max. 200Bar |
| Operating inlet pressure | 20~32 Bar |
| Operating temperature | -29℃ ~ 65℃ |
| Solenoid valve coil | 24VDC |
| Tank capacity | 27、41、 55 kg |
| Output Port | 1/4NPTF |
| Installation Method | vertical |
| Material | Fluororubber, polyurethane, steel, aluminum_x0002_zinc castings |

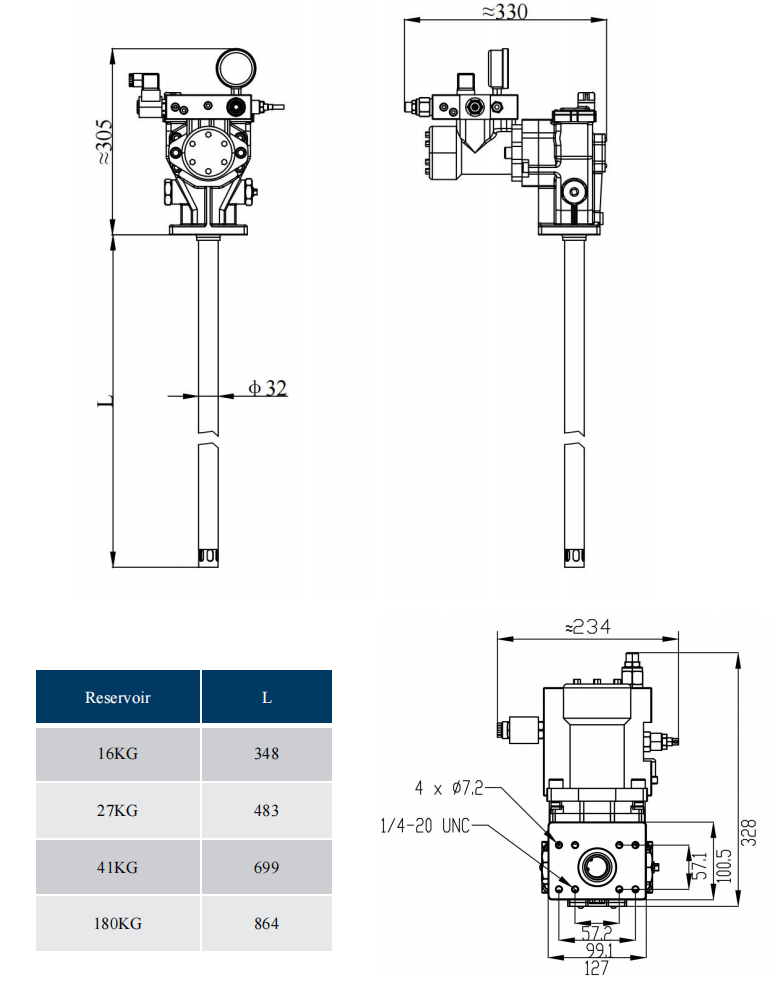

Standalone pump, without oil tank（ mm）

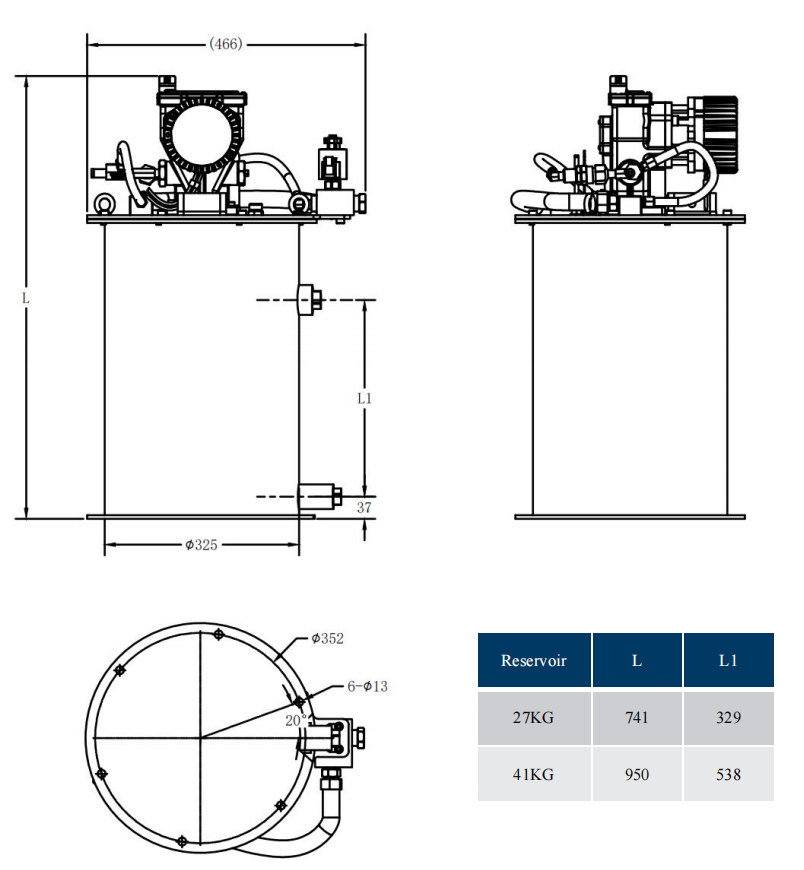

With tank dimensions(mm)

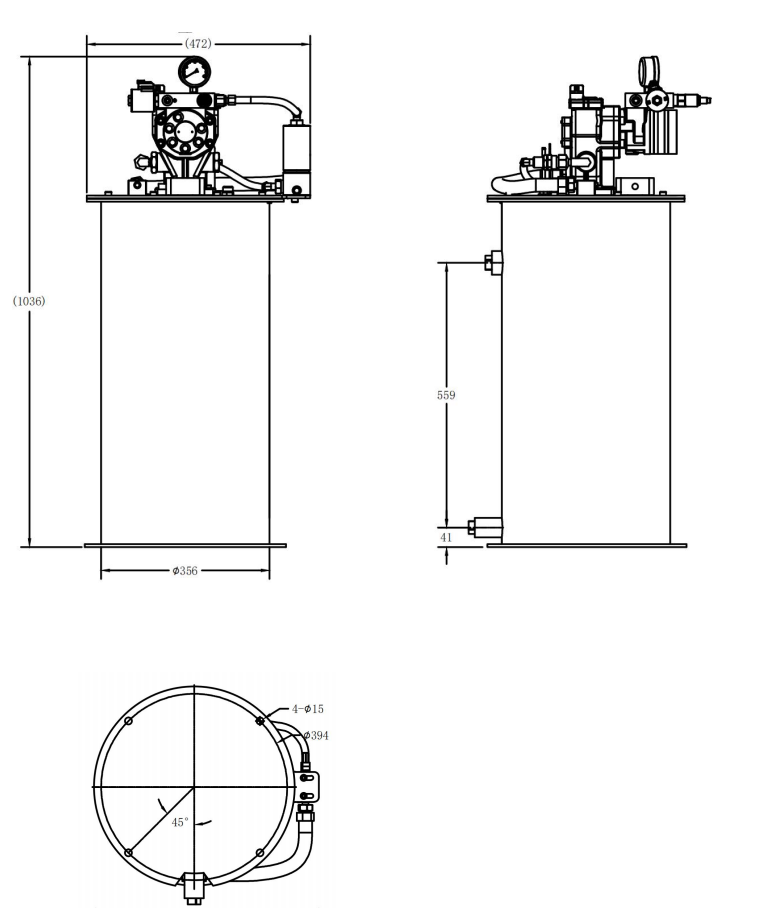

55KG(mm)
Characteristics of LUBESTAR Hydraulic Pump
Extends pump life and simplifies pump installation, operation and service
Pump and tank combination models with automatic level sensor and direct shut-off system
The preferred pump for single-line parallel lubrication systems
Flexible range with options for pump only or pump and tank with follow- up high and low level detection
Suitable for hot deserts and cold climates
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
Applications
Construction machinery
Mining machinery and mining vehicles
Metallurgy
Steel mills
Paper mills
Food and beverages
