DSPP Distributor Valve

DSPP type metering device is a compact single block progressive metering device with adjustable output by means of different metering screw sizes. The screw meters the output for a pair of outlets (opposite outlets). For direct mount of fittings with no need of any sealing in-between. It is a versatile metering device available in many variants regarding type of monitoring or surface treatment.

Teklif Al Katalog İndir

Technical Information of DSPP Distributor Valve

TECHNICAL CHARACTERISTICS
Operating pressure	20~350 Bar
Lubricants	Oil - NLGI 2#
Operating temperature	-25 °C to 70 °C
Metering quantity per cycle and outlet	min 0.08 ml/cyc; max 1.80 ml/cyc
Inlet port	G1/8
Outlet port	M10x1
Outlets	6 - 22
Material	Carbon steel or SS
Lubrication System	Progressive Lubrication System

By crossporting or closing outlets possible to reduce outlet number below given minimum Outlet #1 and #2 should never be closed
Depending on metering screw valid for a pair of opposite outlets

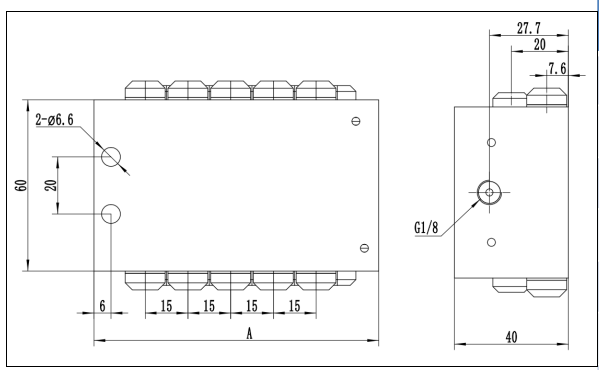

Technical Drawing of DSPP Distributor Valve

Outlets	A
6	70
8	85
10	100
12	115
14	130
16	145
18	160
20	175
22	190

Characteristics of DSPP Distributor Valve

Ten different metering screw sizes available
Optionally visual or electrical monitoring
Ideal for use as primary metering device

Operating pressure: 20~350 Bar

Lubricants: Oil - NLGI 2#

Operating temperature: -25 °C to 70 °C

Metering quantity per cycle and outlet: min 0.08 ml/cyc; max 1.80 ml/cyc

Inlet port: G1/8

Outlet port: M10x1

Outlets: 6 - 22

Material: Carbon steel or SS

Applications of DSPP Distributor Valve

Construction and mining
Farm machinery
Industrial equipment
